LOAD SENSOR | LOAD WEIGHERS

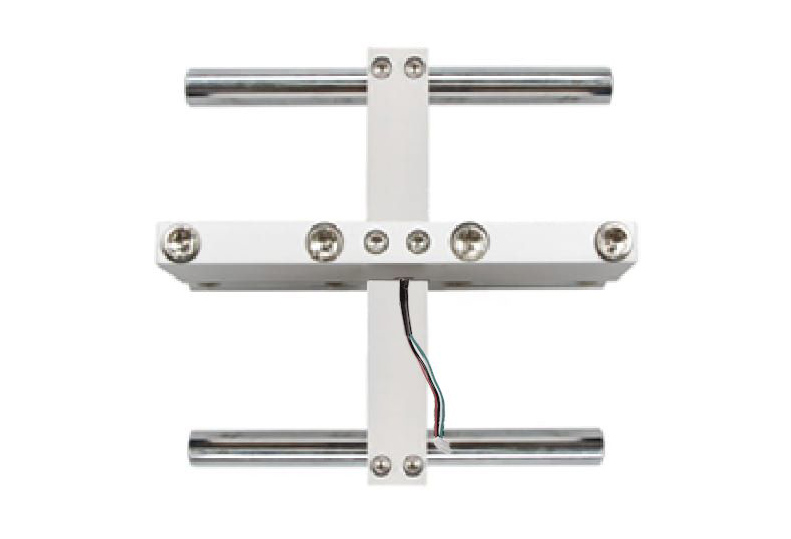

INSTALLATION ON WIRE ROPES

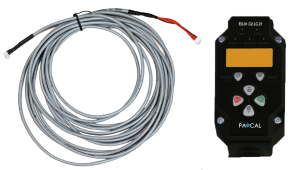

PASCAL - LW21 (ROPE MOUNT)
- Overload weighing system with extremely attractive
performance/ cost ratio - Meet the requirements of EN81
- Controller configured with 6 keys and 4 digits LED display
- Easy installation, only a few minutes are needed to install
multi-rope sensors - Suitable for steel rope with 4-16mm diameter
| Technical Parameter | |||
| Power supply voltage | AC/DC16~65V | Analog output (optional) | |
| Power rating | ≤4W | Galvanically isolated | ○ |
| Alarm relays | 3 | Hold input | 12V - 230V AC/DC |
| Max. switching voltage | 250VAC | Rope diameter | 4mm - 16mm |
| Max. peak current | 5A | Measuring range | 300kg - 2500kg |
| Rated current | 3A | Maximum load | 5000kg |
| Rated load (resistive) in AC1 | 800VA | Dimensions | 210mm x 230mm x 130mm |
| Rated load (inductive) in AC15 | 200VA | Length of cable set | 3m (standard) |
